Where Is the Spark Plug Located?

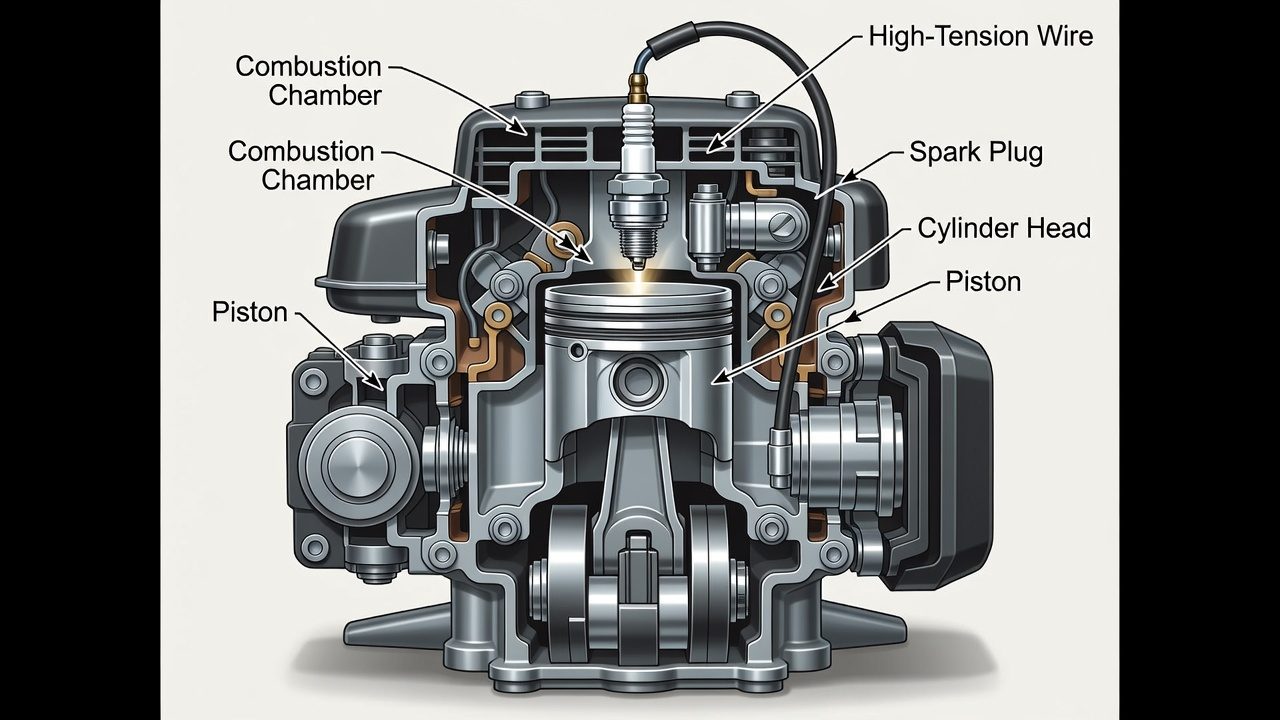

The spark plug is located on your lawn mower’s engine cylinder head, positioned directly above the combustion chamber where fuel ignites. You’ll find it by locating the thick rubber or plastic spark plug wire or cap that extends from the engine—this wire connects directly to the spark plug beneath it. On most push mowers, there’s a single spark plug positioned on top of the engine. On riding mowers with multiple cylinders, you’ll find one spark plug per cylinder, typically arranged along the top or side of the engine block. The exact position varies by engine orientation: horizontal engines (common on push mowers) have the plug on top, while vertical engines position it on the side.
Understanding Lawn Mower Spark Plug Placement
Spark plugs are mounted on the cylinder head because that’s where combustion occurs. The plug must be positioned at the top of the combustion chamber to ignite the fuel-air mixture efficiently. The cylinder head houses the ignition system’s endpoint—where the electrical spark jumps across a gap to create the flame that powers your engine.
Engine type significantly affects spark plug accessibility. Push mowers typically have single-cylinder horizontal or vertical shaft engines with one easily accessible spark plug. Riding mowers</strong often feature two or four-cylinder engines, requiring access to multiple plugs positioned at different locations along the engine block. Understanding your mower type helps you know what to expect when performing maintenance.
Spark Plug Location on Push Mowers
On a standard push mower, the spark plug is usually the most prominent component on the engine’s upper surface. Here’s what to look for:
- The spark plug wire: A thick, black rubber or silicone wire extending from the engine’s top, typically 3-6 inches long, with a rubber or plastic cap on the end
- The location: Directly above the engine block, usually toward the rear or center of the mower deck
- Visual markers: The wire connects to a ceramic insulator visible just below the cap, which screws into the cylinder head
Most residential push mowers use small single-cylinder engines (typically 140-190cc) with one spark plug positioned for optimal access. The plug sits approximately 2-4 inches from the top of the engine housing, making it straightforward to locate and service without removing other components.
Spark Plug Location on Riding Mowers
Riding mowers present more complex spark plug arrangements due to their larger, multi-cylinder engines:
- Two-cylinder engines: Two spark plugs positioned side-by-side or staggered on the cylinder head, each with its own wire
- Four-cylinder engines: Four spark plugs arranged in a row along the engine’s top or side, each with an individual wire leading to the ignition coil
- Access considerations: Spark plug wires on riding mowers may be partially obscured by air filters, fuel tanks, or other engine components, requiring careful navigation
On many riding mowers, you’ll need to remove or reposition the air filter housing or battery to access all spark plugs comfortably. Always consult your mower’s manual for the specific configuration, as placement varies significantly between manufacturers.
How to Locate and Access Your Spark Plug
Step 1: Prepare Your Mower
- Turn off the engine and allow it to cool for 5-10 minutes
- Disconnect the spark plug wire by gently twisting the cap counterclockwise—never pull on the wire itself, as this can damage internal components
- For riding mowers, you may need to remove a cover or panel to access the spark plug area
Step 2: Identify the Spark Plug
- Look for the ceramic component with a thin metal electrode visible at the base
- The plug is threaded into the cylinder head and typically recessed slightly below the surrounding surface
- Use a flashlight if needed to see into the spark plug well
Step 3: Access the Spark Plug
- Insert a spark plug socket (typically 13mm, 14mm, or 16mm depending on your engine) over the plug
- Attach the socket to a ratchet wrench
- Turn counterclockwise to loosen and remove the plug—most residential mower plugs are hand-removable after initial loosening
Tools You’ll Need
- Spark plug socket (check your manual for the correct size)
- Ratchet wrench
- Replacement spark plug (correct model for your engine)
- Spark plug gap tool (optional, for checking the electrode gap)
- Flashlight for visibility
Important Safety Considerations
Always disconnect the spark plug wire before performing any maintenance on your mower. This prevents accidental engine startup while you’re working. Lawn mower engines can start unexpectedly if the spark plug remains connected and the engine is jogged or tilted.
When handling spark plugs, avoid touching the ceramic insulator excessively, as oils from your skin can create conductivity issues. Ground yourself by touching a metal part of the engine before installation to prevent static discharge that could damage ignition components. Never force a spark plug into the threaded hole—thread it gently by hand first, then tighten with a wrench to avoid cross-threading.
If you’re unsure about your mower’s configuration, consult the owner’s manual or a service professional rather than guessing. Incorrect spark plug removal or installation can damage the engine.
Spark Plug Maintenance Tips
Spark plugs typically need inspection every 50-100 hours of operation and replacement every 100-300 hours, depending on engine type and usage. Signs that your spark plug needs attention include:
- Engine difficulty starting or frequent stalling
- Rough idling or inconsistent power delivery
- Excessive black smoke from the exhaust
- Plug gap that has widened excessively (more than 0.040 inches)
When replacing a spark plug, always use the exact model specified in your mower’s manual. Using the wrong plug type or gap size can reduce fuel efficiency and engine performance.
Frequently Asked Questions
How do I know if I have the right spark plug socket size?
Spark plug sockets come in various sizes, typically 13mm, 14mm, 16mm, or 18mm. Check your mower’s owner’s manual for the correct size, or visit a hardware or garden equipment store with the old plug to match the socket. Using the wrong size can damage the plug’s ceramic insulator.
Can I see the spark plug without removing the wire?
On most push mowers, yes. The spark plug is visible once you disconnect the wire cap. Simply twist the wire counterclockwise and pull gently to remove it, exposing the plug top beneath. On riding mowers, you may need to remove additional covers or filters for visibility.
Why won’t my spark plug wire come off?
Spark plug wires can stick due to age, corrosion, or heat damage. Twist the cap gently but firmly counterclockwise while pulling slightly. If it remains stuck, apply a small amount of penetrating oil around the base of the cap, wait a few minutes, and try again. Never yank the wire forcefully, as this damages internal connections.
Do all lawn mowers have accessible spark plugs?
Most residential push and riding mowers have easily accessible spark plugs positioned on top or the side of the engine. However, some commercial-grade or specialty mowers may require removing the entire engine cover or fuel tank for access. Always check your specific mower’s manual for detailed instructions.
Summary
The spark plug on your lawn mower is located on the engine’s cylinder head, identifiable by the thick rubber wire that extends from the engine’s top or side. Finding and accessing it requires only basic tools and a few minutes of preparation. By understanding your mower type and following proper safety procedures, you can confidently perform spark plug maintenance and keep your equipment running smoothly. When in doubt, consult your owner’s manual or contact a professional technician to avoid damage to your mower’s ignition system.
